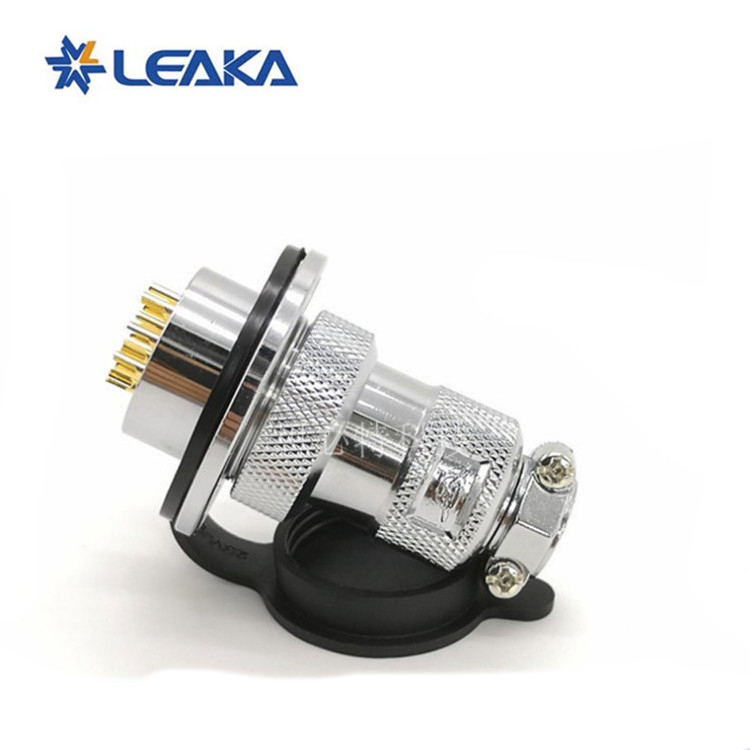

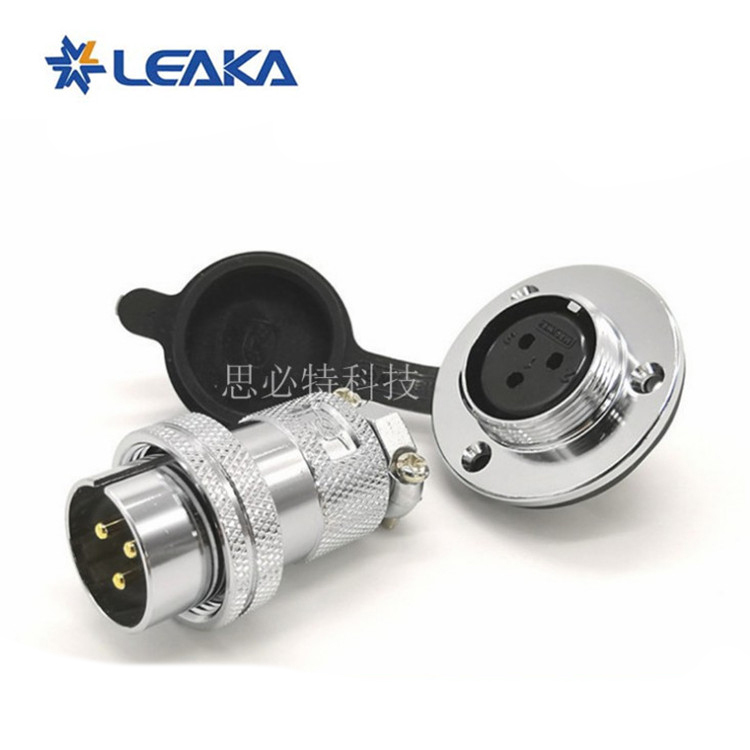

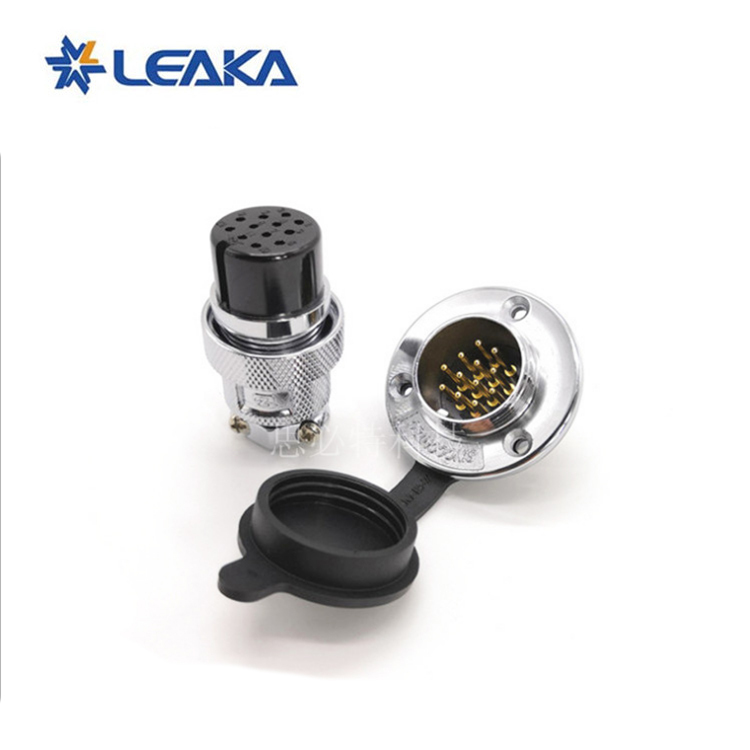

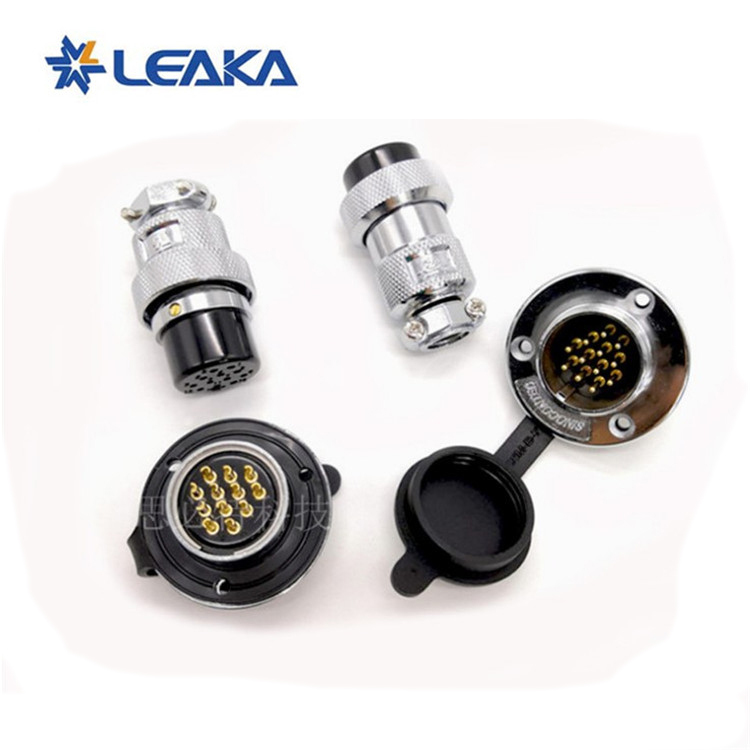

| Product name | 25M m25 cable connector Micro Jack Connector Mrs Connector |
| Coupling | Threaded coupling |
| Shell material | Zinc alloy with nikelplate |
| Contact material | copper( silver/ gold plated) |
| Insert material | bakelite |
| Rated current/voltage | 20A~45A 150V~250V |
| Cable diameter | ≤ Ф 11.5mm |
| Assemble way | assemble board |
| Solder cup mouth aperture | 1.6~2.4mm |
| Solder inter diameter | 2~3.5mm |
| Operation limit voltage(AC.V.rms) | 250V~400V |
| Mating cycle | 500 |
| Temperature | -20℃~+85℃ |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
