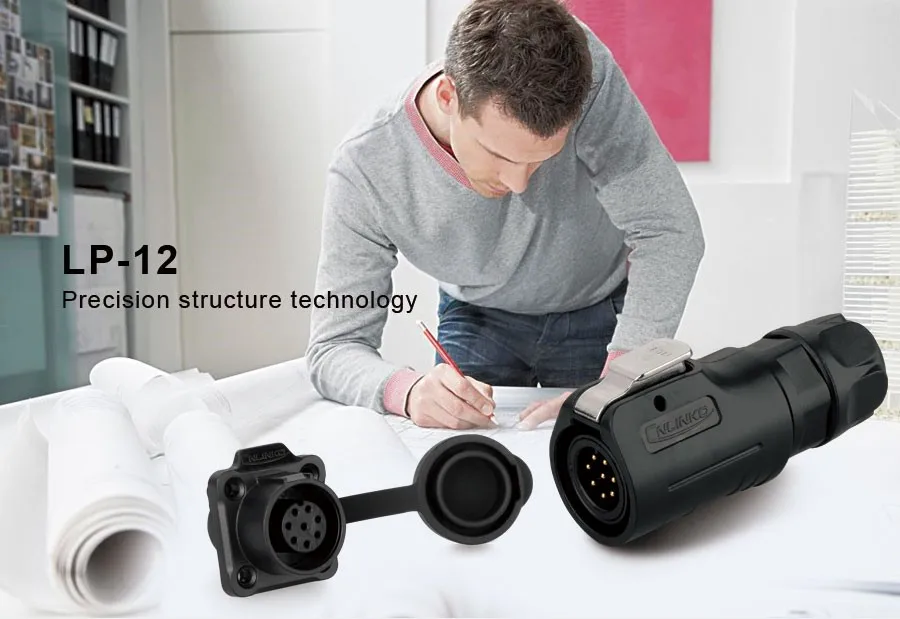

Cnlinko LP-12 series of products, containing models with hole size 12mm to meet different needs of industry and we use nickel-plated and zinc alloy to guarantee quality and apply with international environment protection of industrial equiment as well.
Features:
With multi-core(2-8 core) design to fit with different industrial needs.
Design snap lock ensures stable and security firm.
Humanization design achieved blind operation.
Both soldering and crimping are available
Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.
Gold-plating;high strength corrosion resistance and electrical conductivity.
Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.
Both cable connector to cable connector and cable connector to panel mounting are available.
IP65 to IP67 when mated.
| Product name | cnlinko electrical cable M12 waterproof connector |
| Coupling | Bayonet |
| Shell material | high performance engineering resins |
| Contact material |
Copper alloy (gold-plated) |
| Features | spring presses the lock, prompt insert, PBT material, strong connection |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 5000 pcs per month |
| Mating cycle | 500 |
| Temperature | -40℃~+85℃ |
| IP rating | IP67 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
